Pinky Schooner Maine
Regular price
$80.00
Sale
Based on a half-model in the Boothbay Region Historical Society collections, these plans were drawn by Samuel F. Manning of Camden. The half-model is believed to represent a pinky schooner built in 1832 by Capt. Levi Reed at East Boothbay.

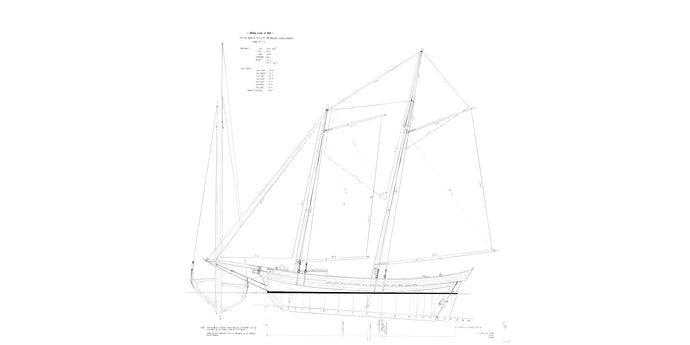

The sail plan is based on Fig. I (p. 39) in The American Fishing Schooners by Howard I. Chapelle. These drawings were made in the early 1980s, and used by Maine Maritime Museum boatbuilders in the construction of the pinky schooner Maine, which was completed in 1986.
Changes were made during the several years it took to build Maine, and it is possible that the drawings listed here do not perfectly represent the vessel as built.
8 Sheets: Lines and Offsets, Lines and Deck Details, Hull Construction Layout Sheet, Hull Sections, Hull Construction, Backbone and Cant Frame Layout, Straight-Timber Backbone Construction and Lines Alterations to Accommodate Installation of Auxiliary Power, Sail Plan.
Scales as noted.
Link for digital download of plans will be available after purchase and sent to your email.
