Gasoline-powered smack measuring 60’ in length; built in 1916 in East Boothbay by Frank C. Adams. These lines and offsets were drawn by James P. McQuaide from measurements taken by himself, John Bloemendaal and Lynn Riotto in 1995 for MMM.

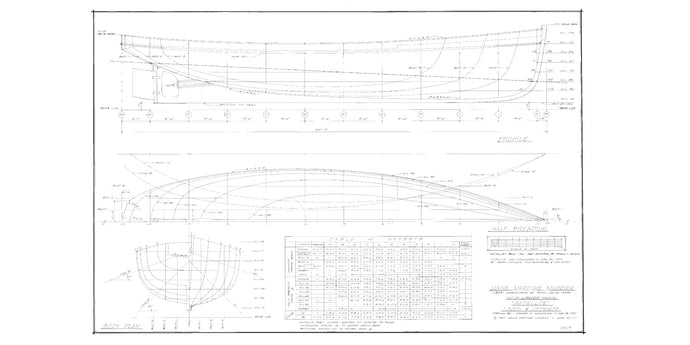

One sheet of lines includes a profile, half-breadth, body plan and offsets. No drawings of superstructure, scantlings, details.
Scale: ½”=1’
Link for digital download of plans will be available after purchase and sent to your email.
